AIRCRAFT

PARTS OF AIRCRAFT

Airplanes are transportation devices which are designed to move people and cargo from one place to another. Airplanes come in many different shapes and sizes depending on the mission of the aircraft. The airplane shown on this slide is a turbine-powered airliner which has been chosen as a representative aircraft.

For any airplane to fly, one must lift the weight of the airplane itself, the fuel, the passengers, and the cargo. The wings generate most of the lift to hold the plane in the air. To generate lift, the airplane must be pushed through the air. The air resists the motion in the form of aerodynamic drag. Modern airliners use winglets on the tips of the wings to reduce drag. Theturbine engines, which are located beneath the wings, provide the thrust to overcome drag and push the airplane forward through the air. Smaller, low-speed airplanes use propellers for the propulsion system instead of turbine engines.

To control and maneuver the aircraft, smaller wings are located at the tail of the plane. The tail usually has a fixed horizontal piece, called the horizontal stabilizer, and a fixed vertical piece, called the vertical stabilizer. The stabilizers' job is to provide stability for the aircraft, to keep it flying straight. The vertical stabilizer keeps the nose of the plane from swinging from side to side, which is called yaw. The horizontal stabilizer prevents an up-and-down motion of the nose, which is called pitch. (On the Wright brother's first aircraft, the horizontal stabilizer was placed in front of the wings. Such a configuration is called a canard after the French word for "duck").

At the rear of the wings and stabilizers are small moving sections that are attached to the fixed sections by hinges. In the figure, these moving sections are colored brown. Changing the rear portion of a wing will change the amount of force that the wing produces. The ability to change forces gives us a means of controlling and maneuvering the airplane. The hinged part of the vertical stabilizer is called the rudder; it is used to deflect the tail to the left and right as viewed from the front of the fuselage. The hinged part of the horizontal stabilizer is called the elevator; it is used to deflect the tail up and down. The outboard hinged part of the wing is called the aileron; it is used to roll the wings from side to side. Most airliners can also be rolled from side to side by using the spoilers. Spoilers are small plates that are used to disrupt the flow over the wing and to change the amount of force by decreasing the lift when the spoiler is deployed.

The wings have additional hinged, rear sections near the body that are called flaps. Flaps are deployed downward on takeoff and landing to increase the amount of force produced by the wing. On some aircraft, the front part of the wing will also deflect. Slats are used at takeoff and landing to produce additional force. The spoilers are also used during landing to slow the plane down and to counteract the flaps when the aircraft is on the ground. The next time you fly on an airplane, notice how the wing shape changes during takeoff and landing.

The fuselage or body of the airplane, holds all the pieces together. The pilots sit in the cockpit at the front of the fuselage. Passengers and cargo are carried in the rear of the fuselage. Some aircraft carry fuel in the fuselage; others carry the fuel in the wings.

As mentioned above, the aircraft configuration in the figure was chosen only as an example. Individual aircraft may be configured quite differently from this airliner. The Wright Brothers 1903 Flyer had pusher propellers and the elevators at the front of the aircraft. Fighter aircraft often have the jet engines buried inside the fuselage instead of in pods hung beneath the wings. Many fighter aircraft also combine the horizontal stabilizer and elevator into a single stabilator surface. There are many possible aircraft configurations, but any configuration must provide for the four forces needed for flight.

AIRPORT OPERATION

AIRPORT OPERATION

Air traffic Control

The majority of the world's airports are non-towered, with no air traffic control presence. However, at particularly busy airports, or airports with other special requirements, there is an air traffic control (ATC) system whereby controllers (usually ground-based) direct aircraft movements via radio or other communications links. This coordinated oversight facilitates safety and speed in complex operations where traffic moves in all three dimensions. Air traffic control responsibilities at airports are usually divided into at least two main areas: ground and tower, though a single controller may work both stations. The busiest airports also have clearance delivery, apron control, and other specialized ATC stations.

Ground Control is responsible for directing all ground traffic in designated "movement areas", except the traffic on runways. This includes planes, baggage trains, snowplows, grass cutters, fuel trucks, and a wide array of other vehicles. Ground Control will instruct these vehicles on which taxiways to use, which runway they will use (in the case of planes), where they will park, and when it is safe to cross runways. When a plane is ready to takeoff it will stop short of the runway, at which point it will be turned over to Tower Control. After a plane has landed, it will depart the runway and be returned to Ground Control.

Tower Control controls aircraft on the runway and in the controlled airspace immediately surrounding the airport. Tower controllers may use radar to locate an aircraft's position in three-dimensional space, or they may rely on pilot position reports and visual observation. They coordinate the sequencing of aircraft in the traffic pattern and direct aircraft on how to safely join and leave the circuit. Aircraft which are only passing through the airspace must also contact Tower Control in order to be sure that they remain clear of other traffic.

Traffic pattern

All airports use a traffic pattern (often called a traffic circuit outside the U.S.) to assure smooth traffic flow between departing and arriving aircraft. Generally, this pattern is a circuit consisting of five "legs" that form a rectangle (two legs and the runway form one side, with the remaining legs forming three more sides). Each leg is named (see diagram), and ATC directs pilots on how to join and leave the circuit. Traffic patterns are flown at one specific altitude, usually 800 or 1,000 ft (244 or 305 m) above ground level(AGL). Standard traffic patterns are left-handed, meaning all turns are made to the left. Right-handed patterns do exist, usually because of obstacles such as a mountain, or to reduce noise for local residents. The predetermined circuit helps traffic flow smoothly because all pilots know what to expect, and helps reduce the chance of a mid-air collision.

At extremely large airports, a circuit is in place but not usually used. Rather, aircraft (usually only commercial with long routes) request approach clearance while they are still hours away from the airport, often before they even takeoff from their departure point. Large airports have a frequency called Clearance Delivery which is used by departing aircraft specifically for this purpose. This then allows airplanes to take the most direct approach path to the runway and land without worrying about interference from other aircraft. While this system keeps the airspace free and is simpler for pilots, it requires detailed knowledge of how aircraft are planning to use the airport ahead of time and is therefore only possible with large commercial airliners on pre-scheduled flights. The system has recently become so advanced that controllers can predict whether an aircraft will be delayed on landing before it even takes off; that aircraft can then be delayed on the ground, rather than wasting expensive fuel waiting in the air.

Navigational aids

Here are a number of aids available to pilots, though not all airports are equipped with them. A Visual Approach Slope Indicator (VASI) helps pilots fly the approach for landing. Some airports are equipped with a VHF omnidirectional range (VOR) to help pilots find the direction to the airport. VORs are often accompanied by a distance measuring equipment (DME) to determine the distance to the VOR. VORs are also located off airports, where they serve to provide airways for aircraft to navigate upon. In poor weather, pilots will use an instrument landing system (ILS) to find the runway and fly the correct approach, even if they cannot see the ground. The number of instrument approaches based on the use of the Global Positioning System (GPS) is rapidly increasing and may eventually be the primary means for instrument landings.

Larger airports sometimes offer precision approach radar (PAR), but these systems are more common at military air bases than civilian airports. The aircraft's horizontal and vertical movement is tracked via radar, and the controller tells the pilot his position relative to the approach slope. Once the pilots can see the runway lights, they may continue with a visual landing.

Guidance signs

Airport guidance signs provide direction and information to taxiing aircraft and airport vehicles. Smaller airports may have few or no signs, relying instead on airport diagrams and charts.

There are two classes of signage at airports, with several types of each:

  Location Sing For A Taxi Way

 Direction Sing To Taxi Way Bravo

         No Entry Sing





Operational guidance signs

Mandatory instruction signs are white on red. They show entrances to runways or critical areas. Vehicles and aircraft are required to stop at these signs until the control tower gives clearance to proceed.

(1) Runway signs – White text on a red background. These signs simply identify a runway intersection ahead.

(2) Frequency Change signs – Usually a stop sign and an instruction to  change to another frequency. These signs are used at airports with different areas of ground control.

(3) Holding Position signs – A single solid yellow bar across a taxiway indicates a position where ground control may require a stop. If two solid yellow bars and two dashed yellow bars are encountered, this indicates a holding position for a runway intersection ahead; runway holding lines must never be crossed without permission. At some airports, a line of red lights across a taxiway is used during low visibility operations to indicate holding positions. An "interrupted ladder" type marking with an "ILS" sign in white on red indicates a holding position before an ILS critical area.

Lighting



Many airports have lighting that help guide planes using the runways and taxiways at night or in rain or fog.

On runways, green lights indicate the beginning of the runway for landing, while red lights indicate the end of the runway. Runway edge lighting consists of white lights spaced out on both sides of the runway, indicating the edge. Some airports have more complicated lighting on the runways including lights that run down the centerline of the runway and lights that help indicate the approach (an Approach Lighting System, or ALS). Low-traffic airports may use Pilot Controlled Lighting to save electricity and staffing costs.

Along taxiways, blue lights indicate the taxiway's edge, and some airports have embedded green lights that indicate the centerline.

Obstruction Lighting

Used to mark hazards

Gives pilots a visual aid (usually creates a lane)

Meant to be visible to pilots and not a disturbance to people on ground.

Weather observations

Weather observations at the airport are crucial to safe takeoffs and landings. In the US and Canada, the vast majority of airports, large and small, will either have some form of automated airport weather station, whether an AWOS, ASOS, or AWSS, a human observer or a combination of the two. These weather observations, predominantly in the METAR format, are available over the radio, throughAutomatic Terminal Information Service (ATIS), via the ATC or the Flight Service Station.

Planes take-off and land into the wind in order to achieve maximum performance. Because pilots need instantaneous information during landing, a windsock is also kept in view of the runway.

AERODROME

AERODROME

An aerodrome, airdrome or airfield is a term for any location from which aircraft flight operations take place, regardless of whether they involve cargo, passengers or neither. A water aerodrome is an area of open water used regularly by seaplanes or amphibious aircraft for landing and taking off.

The word was created by analogy with "Hippodrome" (Greek, from hippos (ἵππος), horse, and dromos (δρόμος), race or course), which was a course for horse racing and chariot racing in ancient times. The word "aerodrome" is derived from the Greek words aeros (αέρος), "air" and dromos (δρόμος), "race" or "course", literally meaning "air course."

The term is used in International Civil Aviation Organization (ICAO) documents, for example in the Annex to the ICAO Convention about aerodromes, their physical characteristics and their operation. The term "airport" is also used in the aviation industry. There is not a clear difference in meaning between the two terms in colloquial usage; however, the term airport may imply a certain stature (having satisfied certain certification criteria or regulatory requirements) that an aerodrome proper may not have achieved. That is to say, all airports are aerodromes, but not all aerodromes are airports.

The first use of the term "airport" originated in Southampton, England; when the flying boats landed and departed from the port of Southampton, it was named ‘air-port’ by the Mayor of Southampton.

The earliest aircraft takeoff and landing sites were grassy fields. The plane could approach at any angle that provided a favorable wind direction. A slight improvement was the dirt-only field, which eliminated the drag from grass. However, these only functioned well in dry conditions. Later, concrete surfaces would allow landings, rain or shine, day or night.

The title of "world's oldest airport" is disputed, but College Park Airport in Maryland, US, established in 1909 by Wilbur Wright, is generally agreed to be the world's oldest continually operating airfield,although it serves only general aviation traffic.

College Park Airport

Another claim to the world's oldest airport is from Bisbee-Douglas International Airport, Douglas, Arizona, US, which had the first airplane in the state. In 1908 the Douglas Aeronautical Club was formed, starting with a glider made from mail order plans. This glider was pulled into the air by two horses and flown behind the Douglas YMCA building. In 1909 a motor and propeller were put on the airplane, making it the first powered airplane in Arizona. The airport's status as the first international airport in the US is confirmed by a letter from President Roosevelt declaring it "the first international airport of the Americas".

 Bisbee-Douglas International Airport

Albany International Airport is the oldest municipal airport in the United States.

Shoreham Airport was created near Brighton, Sussex, England in 1910 and is Britain's oldest municipal airport today.

Albany International Airport

Shoreham Airport

Bremen Airport opened in 1913 and remains in use, although it served as an American military field between 1945 and 1949. Amsterdam Airport Schiphol opened on September 16, 1916 as a military airfield, but only accepted civil aircraft from December 17, 1920, allowing Sydney Airport in Sydney, Australia—which started operations in January 1920—to claim to be one of the world's oldest continually operating commercial airports.Minneapolis-Saint Paul International Airport in Minneapolis-Saint Paul, Minnesota, opened in 1920 and has been in continuous commercial service since. It serves about 35,000,000 passengers each year and continues to expand, recently opening a new 11,000 foot (3,355 meter) runway. Of the airports constructed during this early period in aviation, it is one of the largest and busiest that is still currently operating. Rome Ciampino Airport, opened 1916, is also a contender. Increased aircraft traffic during World War I led to the construction of landing fields. Aircraft had to approach these from certain directions and this led to the development of aids for directing the approach and landing slope.

Following the war, some of these military airfields added civil facilities for handling passenger traffic. One of the earliest such fields was Paris – Le Bourget Airport at Le Bourget, near Paris. The first airport to operate scheduled international commercial services was Hounslow Heath Aerodrome in August 1919, but it was closed and supplanted by Croydon Airport in March 1920. In 1922, the first permanent airport and commercial terminal solely for commercial aviation was opened at Flughafen Devau near what was then Königsberg, East Prussia. The airports of this era used a paved "apron", which permitted night flying as well as landing heavier aircraft.

The first lighting used on an airport was during the later part of the 1920s; in the 1930s approach lighting came into use. These indicated the proper direction and angle of descent. The colours and flash intervals of these lights became standardized under the International Civil Aviation Organization (ICAO). In the 1940s, the slope-line approach system was introduced. This consisted of two rows of lights that formed a funnel indicating an aircraft's position on the glideslope. Additional lights indicated incorrect altitude and direction.

Following World War II, airport design became more sophisticated. Passenger buildings were being grouped together in an island, with runways arranged in groups about the terminal. This arrangement permitted expansion of the facilities. But it also meant that passengers had to travel further to reach their plane.

An improvement in the landing field was the introduction of grooves in the concrete surface. These run perpendicular to the direction of the landing aircraft and serve to draw off excess water in rainy conditions that could build up in front of the plane's wheels.

Airport construction boomed during the 1960s with the increase in jet aircraft traffic. Runways were extended out to 3,000 m (9,800 ft). The fields were constructed out of reinforced concrete using a slip-form machine that produces a continual slab with no disruptions along the length. The early 1960s also saw the introduction of jet bridge systems to modern airport terminals, an innovation which eliminated outdoor passenger boarding. These systems became commonplace in the United States by the 1970s.

Modern runways are thickest in the area where aircraft move slowly and are expected to have maximum load, i.e. runway ends. A common myth is that airplanes produce their greatest load during landing due to the "impact" of landing. This is untrue as much of the aircraft weight remains on the wings due to lift. Runways are constructed as smooth and level as possible.

AIRPORT

An airport is a location where aircraft such as fixed-wing aircraft, helicopters, and blimps take off and land. Aircraft may be stored or maintained at an airport. An airport consists of at least one surface such as a runway for a plane to take off and land, a helipad, or water for takeoffs and landings, and often includes buildings such as control towers, hangars and terminalbuildings.

Larger airports may have fixed base operator services, seaplane docks and ramps, air traffic control, passenger facilities such as restaurants and lounges, and emergency services. A military airport is known as an airbase or air station. The termsaerodrome, airdrome, airfield, and airstrip may also be used to refer to airports, and the terms heliport, seaplane base, andSTOLport refer to airports dedicated exclusively to helicopters, seaplanes, or short take-off and landing aircraft.

In colloquial use, the terms airport and aerodrome are often interchanged. However, in general, the term airport may imply or confer a certain stature upon the aviation facility that an aerodrome proper may not have achieved. In some jurisdictions, airportis a legal term of art reserved exclusively for those aerodromes certified or licensed as airports by the relevant governing organization (e.g. the U.S. Federal Aviation Administration (FAA), or Transport Canada) after meeting specified certification criteria or regulatory requirements. That is to say, in the purest sense, all airports are aerodromes, but not all aerodromes are airports. Other jurisdictions define an airport as one that is furnished with the customs offices expected of a port of entry,though the more general term for such aerodromes is airport of entry. In jurisdictions where there is no legal distinction between aerodrome and airport, the terms are often used according to the users' or managers' preference.

Airports are divided into landside and airside areas. Landside areas include parking lots, public transportation train stations, tank farms and access roads. Airside areas include all areas accessible to aircraft, including runways,taxiways, ramps and tank farms. Access from landside areas to airside areas is tightly controlled at most airports. Passengers on commercial flights access airside areas through terminals, where they can purchase tickets, clearsecurity check, or claim luggage and board aircraft through gates. The waiting areas which provide passenger access to aircraft are typically called concourses, although this term is often used interchangeably with terminal.

The area where aircraft park next to a terminal to load passengers and baggage is known as a ramp (or "thetarmac"). Parking areas for aircraft away from terminals are called aprons.

Airports can be towered or non-towered, depending on air traffic density and available funds. Due to their high capacity and busy airspace, many international airports have air traffic control located on site.

Airports with international flights have customs and immigration facilities. However, as some countries have agreements that allow travel between them without customs and immigrations, such facilities are not a definitive need for an international airport. International flights often require a higher level of physical security, although in recent years, many countries have adopted the same level of security for international and domestic travel.

Some airport structures include on-site hotels built within or attached to a terminal building. Airport hotels have grown popular due to their convenience for transient passengers and easy accessibility to the airport terminal. Many airport hotels also have agreements with airlines to provide overnight lodging for displaced passengers.

"Floating airports" are being designed which could be located out at sea and which would use designs such as pneumatic stabilized platform technology.

AIR TRAFFIC CONTROL

The majority of the world's airports are non-towered, with no air traffic control presence. However, at particularly busy airports, or airports with other special requirements, there is an air traffic control (ATC) system whereby controllers (usually ground-based) direct aircraft movements via radio or other communications links. This coordinated oversight facilitates safety and speed in complex operations where traffic moves in all three dimensions. Air traffic control responsibilities at airports are usually divided into at least two main areas: ground and tower, though a single controller may work both stations. The busiest airports also have clearance delivery, apron control, and other specialized ATC stations.

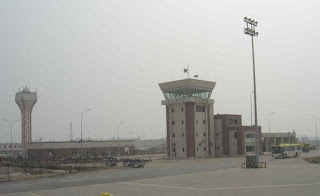

              Air Traffic Controller Tower

Inner View Of Air Traffic Controller Tower

Ground Control is responsible for directing all ground traffic in designated "movement areas", except the traffic on runways. This includes planes, baggage trains, snowplows, grass cutters, fuel trucks, and a wide array of other vehicles. Ground Control will instruct these vehicles on which taxiways to use, which runway they will use (in the case of planes), where they will park, and when it is safe to cross runways. When a plane is ready to takeoff it will stop short of the runway, at which point it will be turned over to Tower Control. After a plane has landed, it will depart the runway and be returned to Ground Control.

Tower Control controls aircraft on the runway and in the controlled airspace immediately surrounding the airport. Tower controllers may use radar to locate an aircraft's position in three-dimensional space, or they may rely on pilot position reports and visual observation. They coordinate the sequencing of aircraft in the traffic pattern and direct aircraft on how to safely join and leave the circuit. Aircraft which are only passing through the airspace must also contact Tower Control in order to be sure that they remain clear of other traffic.

AIRCRAFT LIGHTING

Aircraft Lighting

Landing lights are lights used on aircraft to illuminate the terrain and runway ahead during takeoff and landing.

Almost all modern aircraft are equipped with landing lights if they are intended and approved for nighttime operations. Landing lights are usually of very high intensity because of the considerable distance that may separate an aircraft from terrain or obstacles; the landing lights of large aircraft can easily be seen by other aircraft over 100 miles away.

In the design of landing lights, key considerations are intensity, reliability, weight, and power consumption. Ideal landing lights are extremely intense, require little electrical power, are lightweight, and have long and predictable service lives. Technologies used in past and present have included ordinary incandescent lamps, halogen lamps, various forms arc lamps and discharge lamps, and LED lamps.

Landing lights on a Royal Jordanian Airbus A310, two on the nose undercarriage leg and two on the wings. Click on the picture to see them more clearly.

Landing lights are typically only useful as visibility aids to the pilots when the aircraft is very low and close to terrain, as during take-off and landing. Landing lights are usually extinguished in cruise flight, especially if atmospheric conditions are likely to cause reflection or glare from the lights back into the eyes of the pilots. However, the brightness of the landing lights makes them useful for increasing the visibility of an aircraft to other pilots, and so pilots are often encouraged to keep their landing lights on while in flight below certain altitudes or in crowded airspaces. Some aircraft (especially business jets) have lights that can be operated in a flashing mode when not needed to directly illuminate the ground to enhance the visbility of the aircraft further. One convention is for commercial aircraft to turn on their landing lights when changing flight levels.

Landing lights are sometimes used in emergencies to communicate with ground personnel or other aircraft, especially if other means of communication are not available (radio failures and the like).

Landing lights on a Royal Jordanian Airbus A310, two on the nose undercarriage leg and two on the wings. Click on the picture to see them more clearly.

Landing lights are typically only useful as visibility aids to the pilots when the aircraft is very low and close to terrain, as during take-off and landing. Landing lights are usually extinguished in cruise flight, especially if atmospheric conditions are likely to cause reflection or glare from the lights back into the eyes of the pilots. However, the brightness of the landing lights makes them useful for increasing the visibility of an aircraft to other pilots, and so pilots are often encouraged to keep their landing lights on while in flight below certain altitudes or in crowded airspaces. Some aircraft (especially business jets) have lights that can be operated in a flashing mode when not needed to directly illuminate the ground to enhance the visbility of the aircraft further. One convention is for commercial aircraft to turn on their landing lights when changing flight levels.

Landing lights are sometimes used in emergencies to communicate with ground personnel or other aircraft, especially if other means of communication are not available (radio failures and the like).



Wingtip devices increase the lift generated at the wingtip (by smoothing the airflow across the upper wing near the tip) and reduce the lift-induced drag caused by wingtip vortices, improving lift-to-drag ratio. This increases fuel efficiency in powered aircraft and increases cross-country speed in gliders, in both cases increasing range.

Lights of special significance

In addition to red, white and green running lights, a combination of red, white and green Mast Lights placed on a mast higher than all the running lights, and viewable from all directions, may be used to indicate the type of craft or the service it is performing.

Wingtip devices are usually intended to improve the efficiency of fixed-wing aircraft.^[1] There are several types of wingtip devices, and though they function in different manners, the intended effect is always to reduce the aircraft's drag by altering the airflow near the wingtips. Wingtip devices can also improve aircraft handling characteristics and enhance safety for following aircraft. Such devices increase the effective aspect ratio of a wing without materially increasing the wingspan. An extension of span would lower lift-induced drag, but would increase parasitic dragand would require boosting the strength and weight of the wing. At some point, there is no net benefit from further increased span. There may also be operational considerations that limit the allowable wingspan (e.g., available width at airport gates).
